Phrozen CS+ Bundle

Description

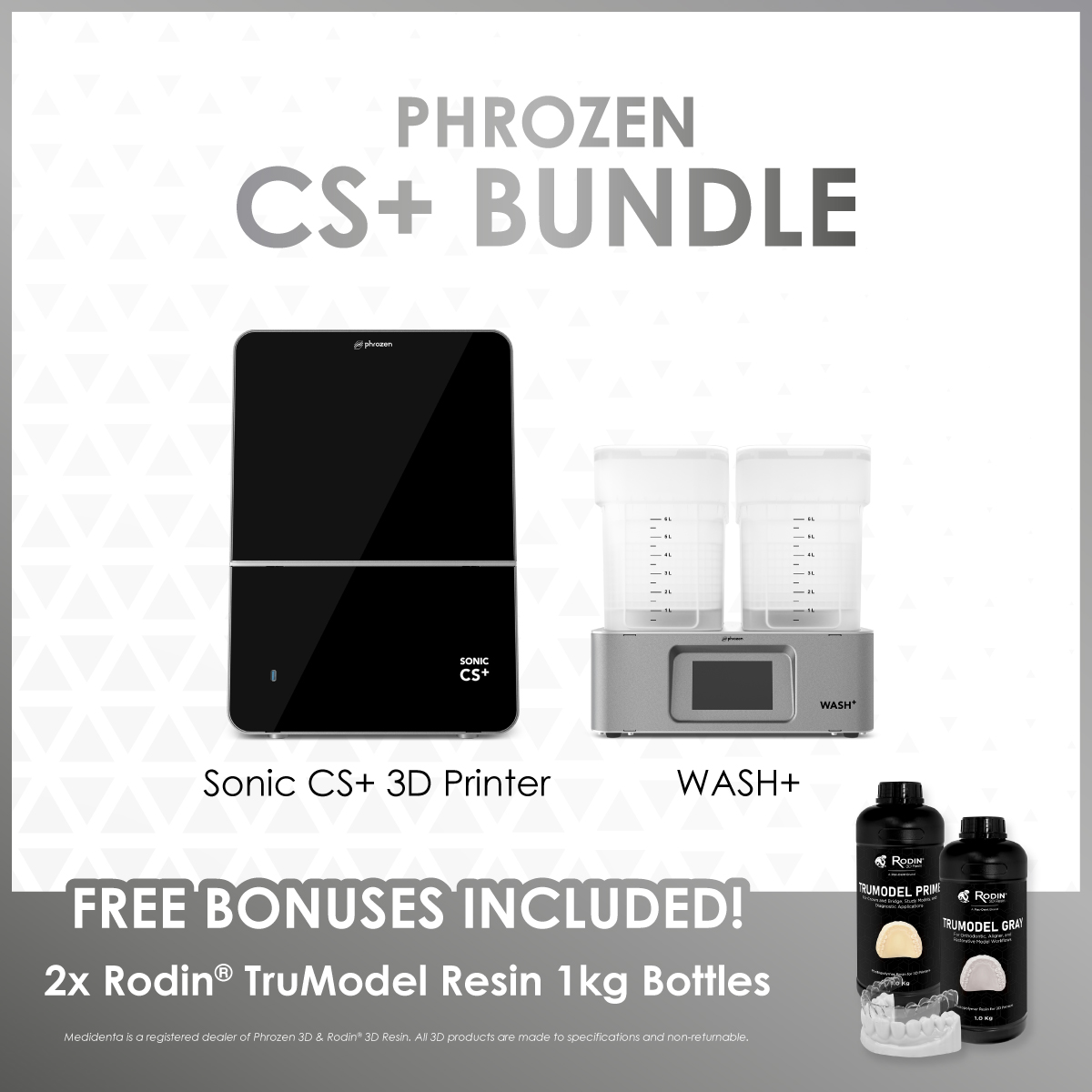

Complete Chairside 3D Printing — Printer, Washer, and Resin in One Bundle

The Phrozen CS+ Bundle gives dental clinics and labs everything needed to launch a high-performance chairside 3D printing workflow in a single, purpose-built package. Combine the precision of the Phrozen Sonic CS+ 3D Printer, the throughput of the Phrozen WASH+ dual-tank washing station, and two complimentary 1kg bottles of Rodin® TruModel resin—and go from digital file to patient-ready model in a fraction of the time.

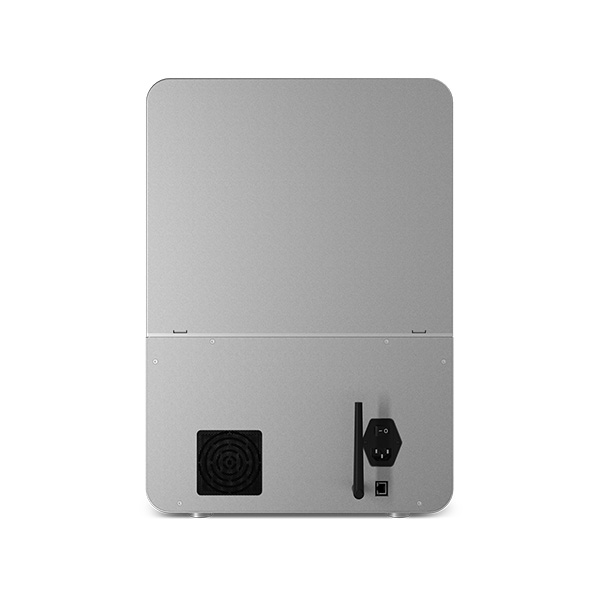

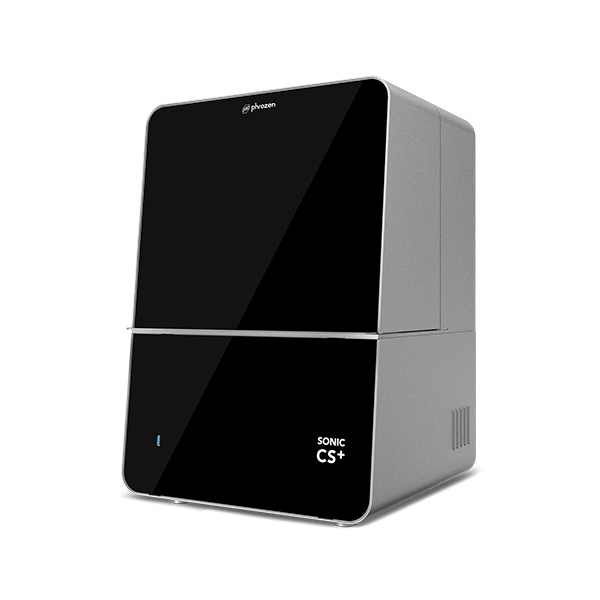

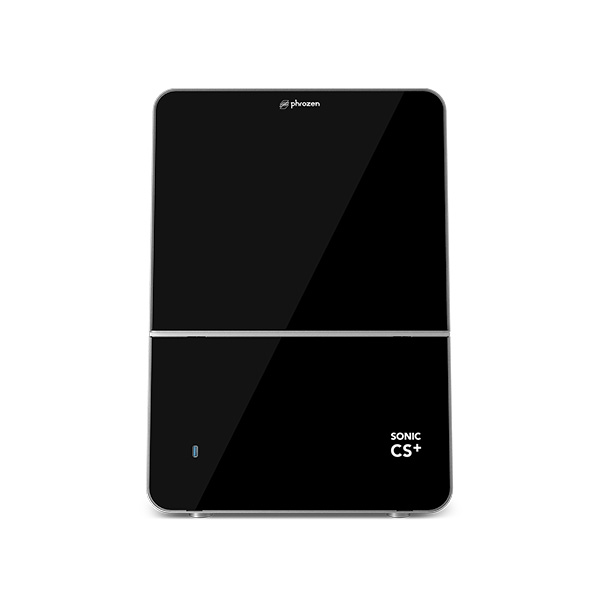

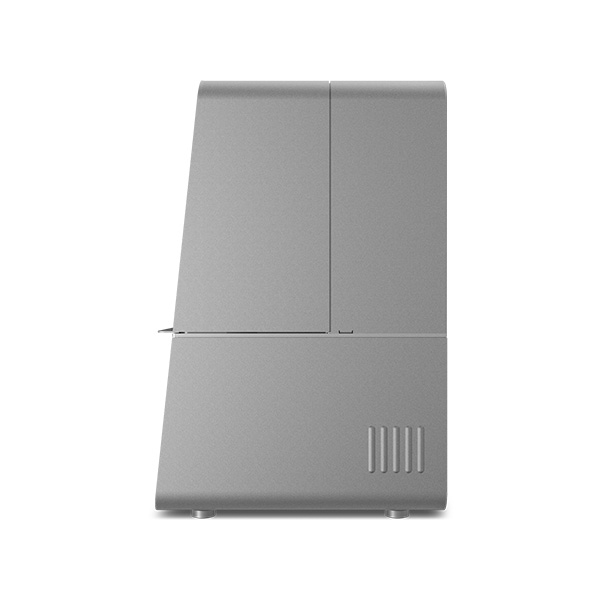

Phrozen Sonic CS+ 3D Printer — Chairside Precision Redefined

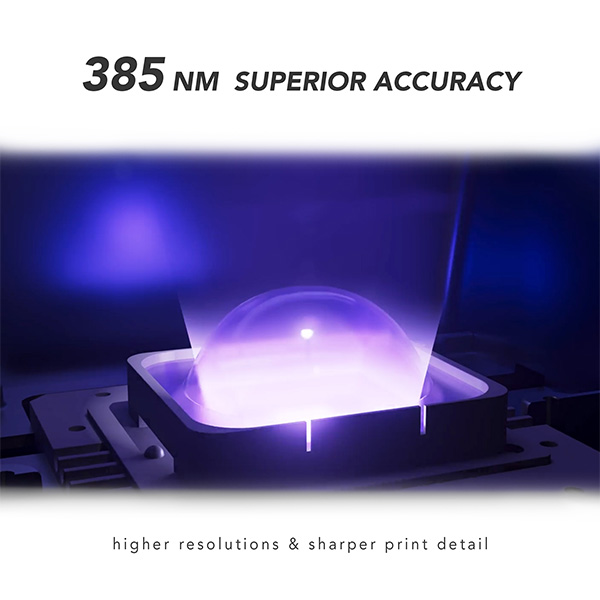

The Sonic CS+ delivers laboratory-grade accuracy directly to your operatory. Powered by a 385 nm UV light source and featuring an industry-leading 22 µm XY resolution, it produces anatomically accurate margins and fine surface detail across full arches—consistently and repeatably.

• XY Resolution: 22 µm for exceptional margin accuracy and surface detail
• Layer Height Options: 30 µm, 50 µm, and 100 µm to balance speed and precision
• Print Speed: Up to 100 mm/hr for rapid, high-volume output
• Build Volume: 165 × 71 × 175 mm—accommodates full arch models with ease
• Setup Time: Pre-leveled build plate and guided tutorial get you printing in as little as 10 minutes
• Intuitive Controls: 7-inch dental-optimized touchscreen with validated resin profiles
• Remote Monitoring: Built-in webcam and Wi-Fi/Ethernet connectivity for web-based control
• Durable Construction: Full-metal housing with dual linear rails prevents leaks and vibration for long-term reliability
• Open Material System: Compatible with leading third-party biocompatible resins—no vendor lock-in

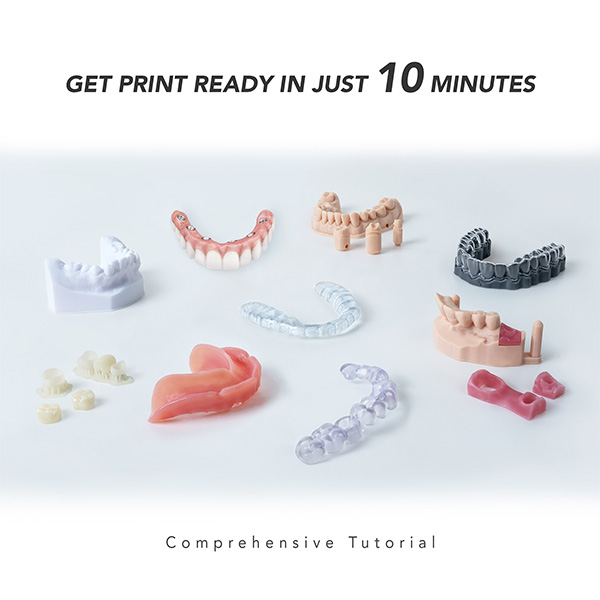

Clinical Applications: Surgical and implant guides, diagnostic models and dies, restorative models, orthodontic aligner and retainer models, indirect bonding trays, occlusal guards, gingiva masks, and All-on-X provisionals.

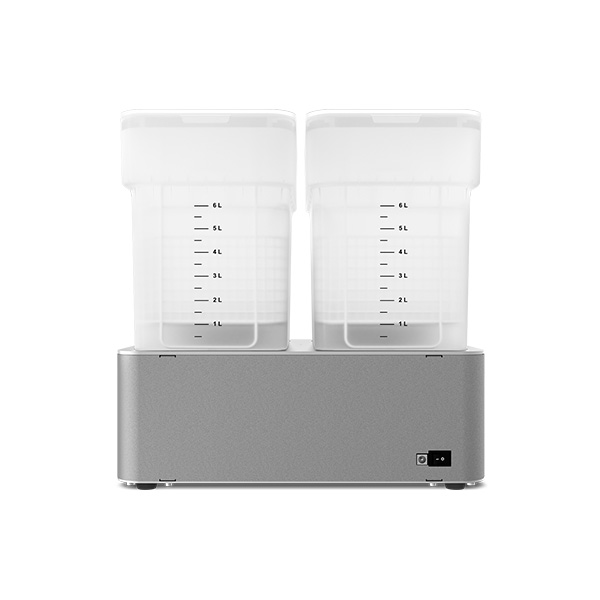

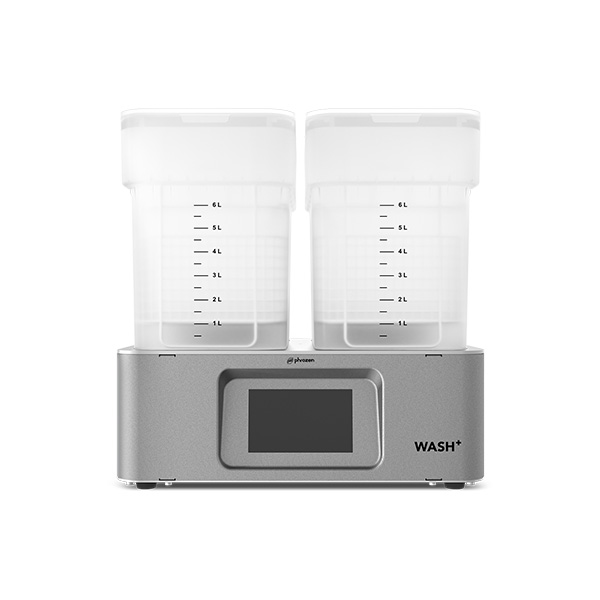

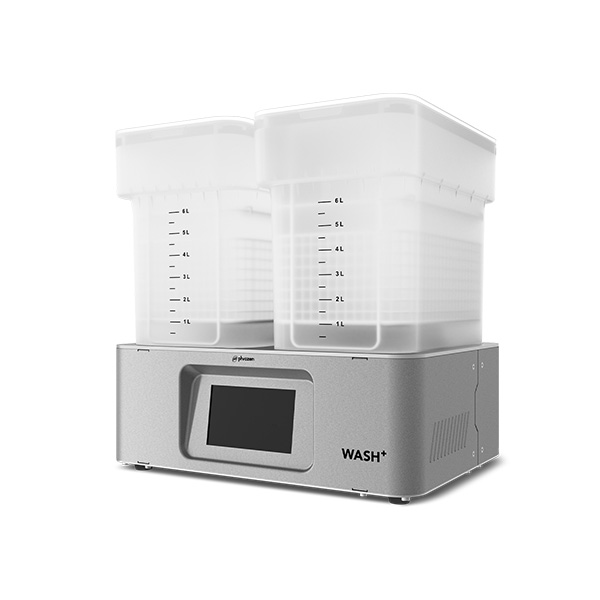

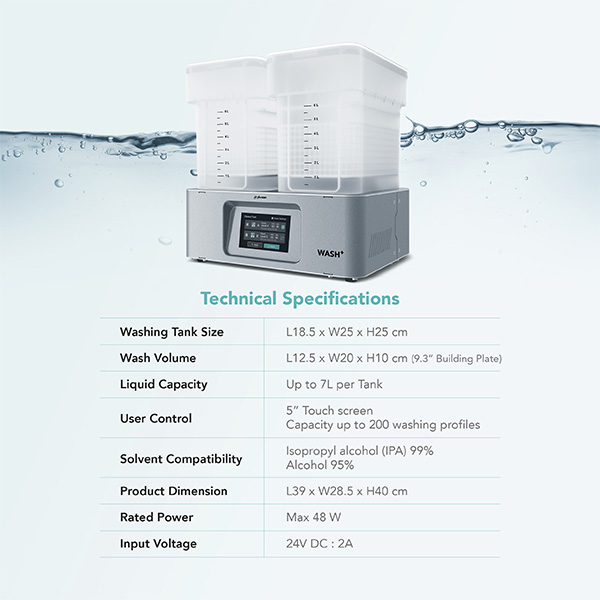

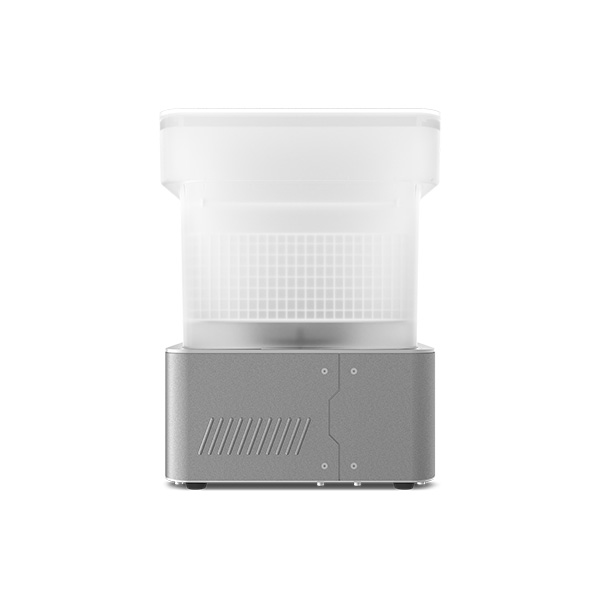

Phrozen WASH+ Post-Processing Unit — Fast, Clean, and Contamination-Free

The WASH+ is a professional dual-tank washing station engineered specifically for high-volume dental workflows. Its two independent 7L tanks enable flexible post-processing strategies that reduce solvent waste and eliminate cross-contamination—without slowing down your production.

• Dual-Tank Design: Run two-stage cleaning (cloudy IPA first, clean IPA final rinse) to extend solvent life and cut costs
• FDA / Non-FDA Separation: Isolate biocompatible models from standard resins to prevent cross-contamination
• High Throughput: Process up to ±48 dental models (two full 9.3″ build plates) simultaneously in one cycle
• Ultra-Fast Cycles: Complete resin removal in approximately 5 minutes—models move straight to curing
• 200 Custom Profiles: Store and recall washing programs via the intuitive 5-inch touchscreen
• Compatible Solvents: IPA 99% or Ethanol 95%
• Compact Footprint: 15 × 11 × 16 in; 20 lbs—fits any lab bench or operatory counter

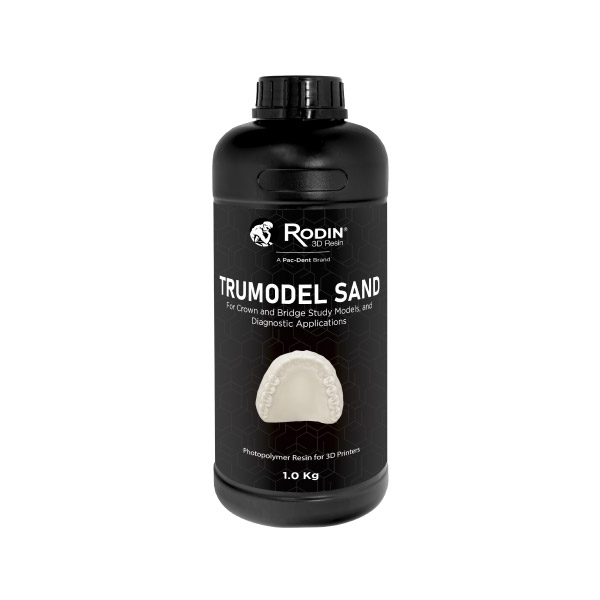

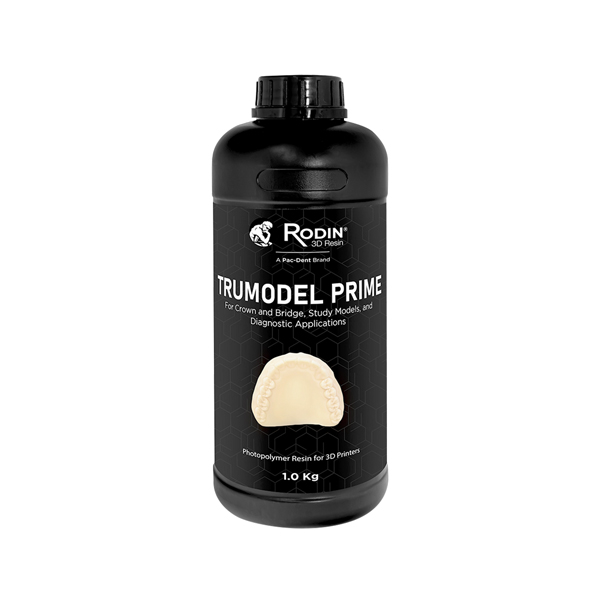

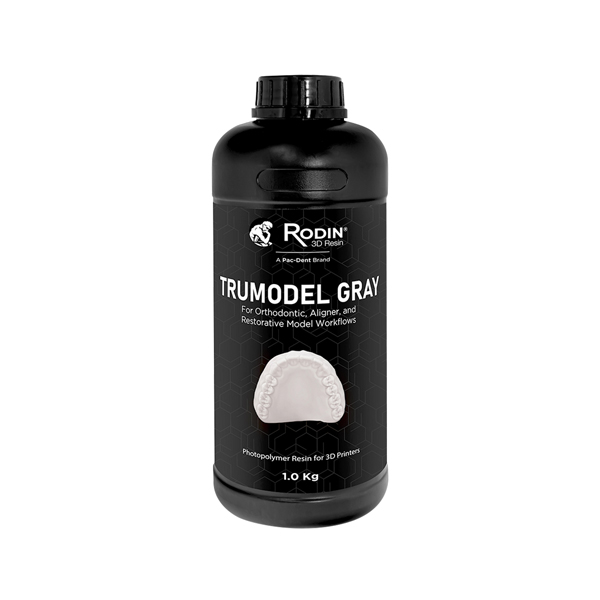

FREE Bonus: 2× Rodin® TruModel (1kg) — Your Shade, Your Choice

Jumpstart your workflow with two complimentary 1kg bottles of Rodin® TruModel, an FDA-listed, VOC-free dental model resin engineered for dimensional accuracy and long-term stability. Its matte, scanner-friendly surface eliminates the need for additional scanning spray, and its clean formulation keeps post-processing simple.

• Dimensional Accuracy: ±50 µm tolerances for true-to-design model integrity
• Regulatory Compliance: FDA-listed, VOC-free, and odor-free for safe clinical use
• Scanner-Ready Surface: Matte finish that accepts markings and supports precise digital scanning
• Long-Term Stability: Resists warping, chalking, and yellowing during extended storage
• Broad Printer Compatibility: Optimized for 385–405 nm DLP/LCD systems, including the Sonic CS+
• Available Shades: Prime, Gray, Sand

Applications: Diagnostic models, restorative dies, crown and bridge work-up models, orthodontic aligner and retainer models, thermoforming templates, and inspection tools.

Why the Phrozen CS+ Bundle?

• Speed & Efficiency: Up to 100 mm/hr printing and 5-minute wash cycles keep production moving without bottlenecks.
• Beginner-Friendly: 10-minute printer setup, pre-loaded resin profiles, and step-by-step tutorials get any practice printing fast.
• Cost Savings: Dual-tank IPA recycling reduces solvent waste; free TruModel resin adds immediate value to your investment.
• Open System: Full third-party resin compatibility across ortho, prostho, and surgical applications—no lock-in.
• Precision & Accuracy: 22 µm XY resolution and ±50 µm model accuracy mean reliable outcomes every print, every patient.
• Validated Workflow: Printer, washer, and resin are engineered to work together—no guesswork on compatibility or settings.

Please allow 4–6 weeks for delivery. Backed by Medidenta’s dental expertise and dedicated 3D printing support team.
